compas gyroscopique optique de fibre
Created with Pixso.

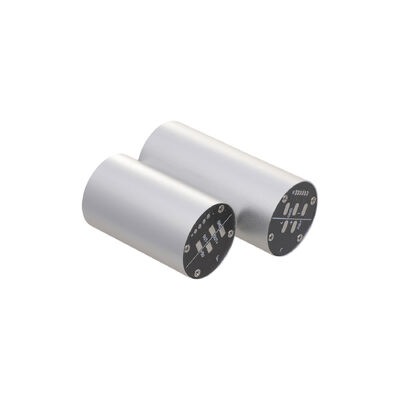

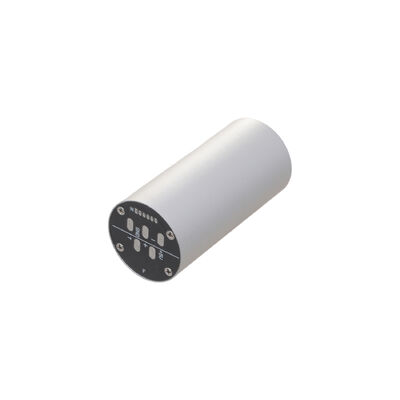

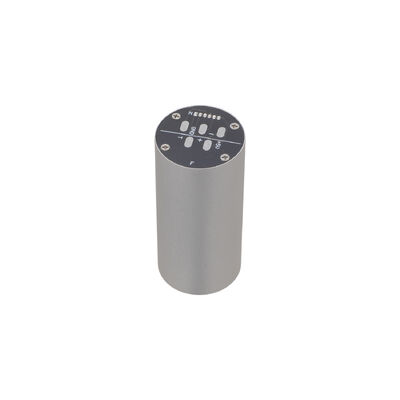

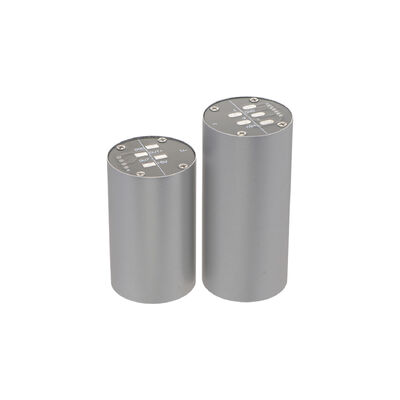

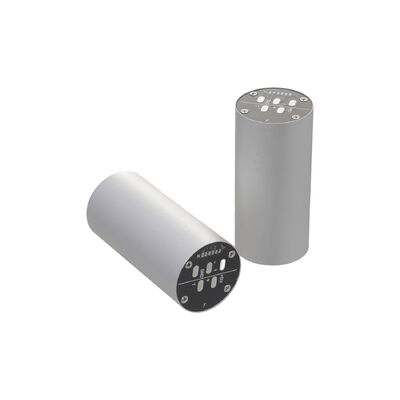

Single Axis Open-loop Fiber Optic Gyro MFOG-24 with 1.5 °Bias stability

Single Axis Open-loop Fiber Optic Gyro MFOG-24 with 1.5 °Bias stability

Nom De Marque: Firepower
Numéro De Modèle: MFOG-24
Nombre De Pièces: 1
Prix: 650~740
Conditions De Paiement: LC, T/T
Capacité à Fournir: 500 / mois
Informations détaillées
Lieu d'origine:
Chine
Stabilité du biais:
≤ 1,5°/h
Marche aléatoire angulaire:
≤0,03°/h^(1/2)
Consommation d'énergie:
≤1,5 W
Répétabilité du biais:
≤ 1,5°/h
Non-linéarité du facteur d'échelle:
300 PAGES PAR MINUTE
Dimension:
24X39mm
Détails d'emballage:
éponge/boîte
Capacité d'approvisionnement:
500 / mois
Mettre en évidence:

Single Axis Fiber Optic Gyro

,

Open-loop Fiber Optic Gyro

,

Fiber Optic Gyro 1.5° Bias stability

Description du produit
Single Axis Open-loop Fiber Optic Gyro MFOG-24 with 1.5° Bias Stability
The MFOG-24 leverages micro-nano fiber optics for ultra-precise angular rate measurement. Despite its miniaturized form factor, it provides high stability and quick initialization.
Applications
  • Autonomous drones
  • Navigation systems
  • Navigation-grade inertial systems
  • Inertial measurement units (IMU)
Main Performance Parameters
Serial No. Project MFOG-24 MFOG-24-AN
1 Range (°/s) ±500 ±300
2 Scale factor 3600 (LSB/o/s) 7mv/o/s
3 Scale factor nonlinearity (ppm) 300 ≤1000
4 Zero-bias stability (10s, 1σ, °/h) ≤1.5 ≤2
5 Zero-bias repeatability (1σ, °/h) ≤1.5 ≤2
6 Angular random walk (°/h 1/2) ≤0.03 ≤0.04
7 Zero bias (°/s) ≤0.02 ≤0.05
8 3dB Band Width (Hz) ≥300 ≥450
9 Power supply (V) 5+0.15 5+0.15
10 Power Consumption (W) ≤1.5 ≤0.7
11 Dimension (mm) φ24X39
