Compas gyroscopique d'accéléromètre d'IMU

Tactical Grade MEMS IMU HG4930 Replacement ±200°/s Gyro 100Hz Bandwidth

Tactical Grade MEMS IMU HG4930 Replacement ±200°/s Gyro 100Hz Bandwidth

Nom De Marque:	FIREPOWER
Numéro De Modèle:	HG4930C
Nombre De Pièces:	1
Prix:	6500$
Conditions De Paiement:	L / C, D / P, T / T, Western Union
Capacité à Fournir:	1 semaine pour l'échantillon

Informations détaillées

Description du produit

Informations détaillées

Lieu d'origine:

CHINE

Certification:

Plage de mesure gyrodynamique:

± 200 ° / s (personnalisable)

Stabilité de biais zéro (@ variance Allan):

≤ 0,2 °/h

Stabilité de biais zéro ((10s lisse):

≤0,5 ° / h

Marche au hasard:

00,02°/√h

Bande passante:

100Hz

Autonomie acc:

±30g

Acc Stabilité de biais zéro (variance d' Allan):

30g

Tension:

Vibration:

10 ~ 2000 Hz ， 6,06g

Poids:

120g

Détails d'emballage:

Sponge + carton

Capacité d'approvisionnement:

1 semaine pour l'échantillon

Mettre en évidence:

Tactical MEMS IMU HG4930 replacement

HG4930 IMU with ±200°/s gyro

MEMS IMU accelerometer 100Hz bandwidth

Description du produit

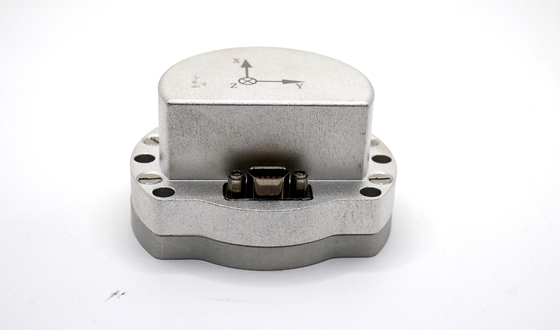

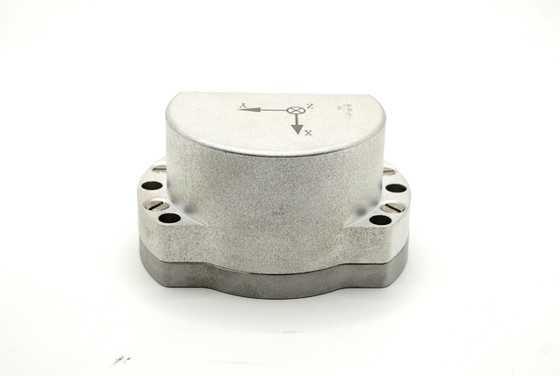

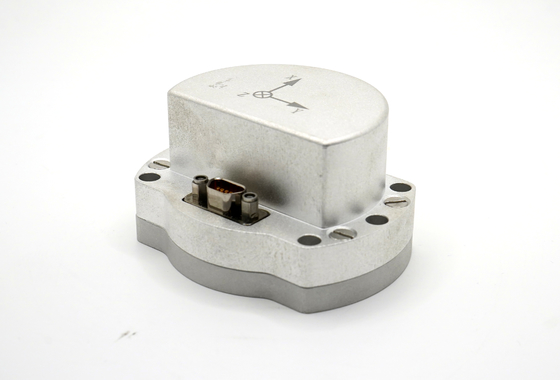

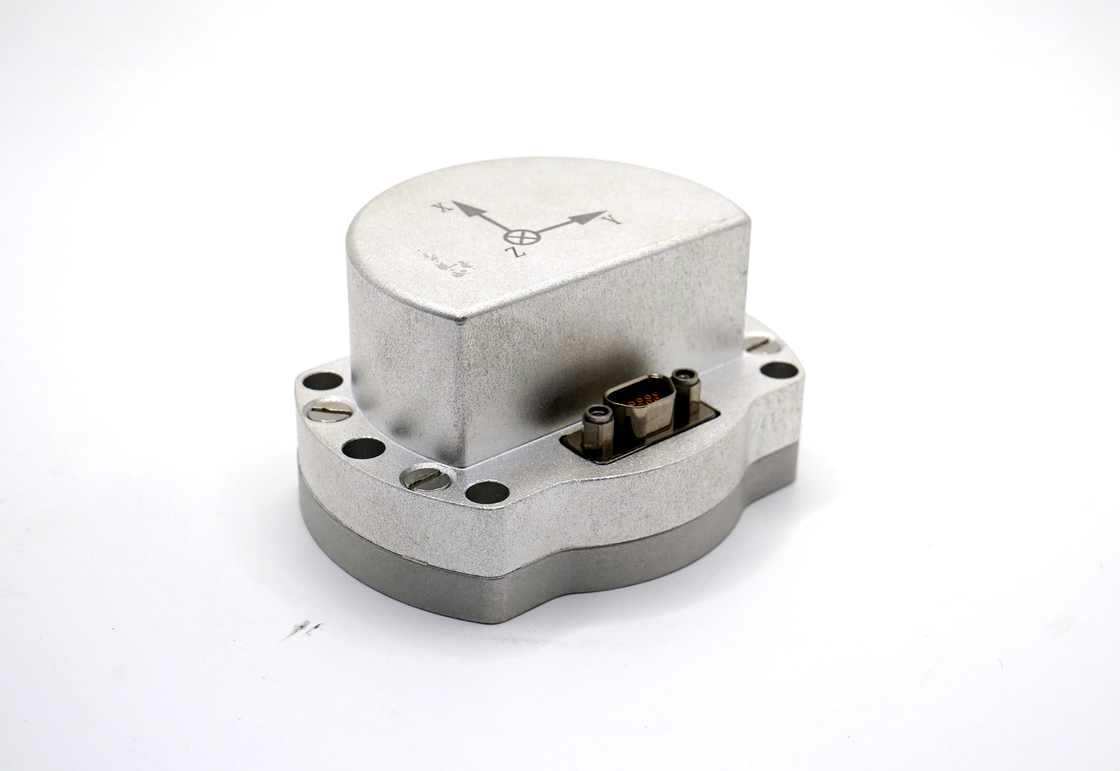

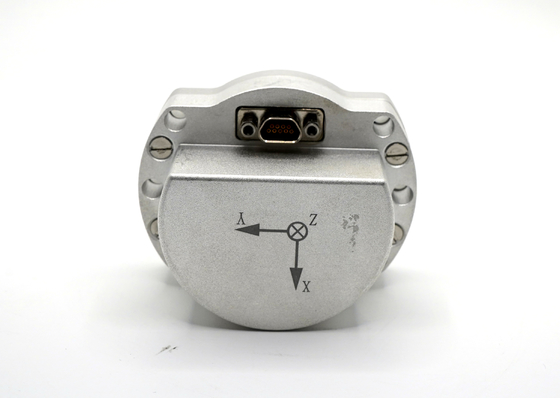

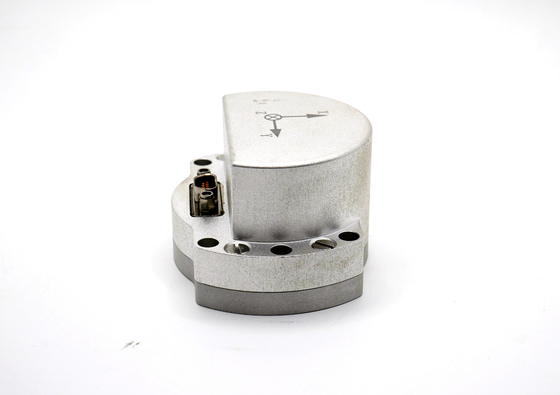

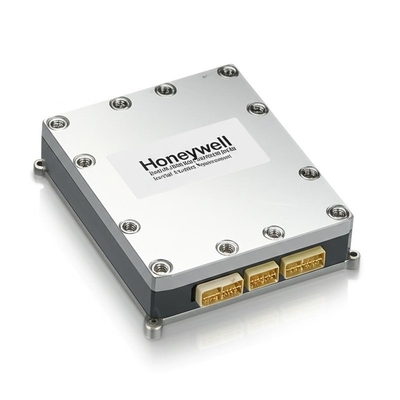

Tactical Grade MEMS Inertial Measurement Unit Honeywell HG4930 Replacement

The MEMS Inertial Measurement Unit (IMU) consists of three-axis gyroscope, three-axis accelerometer, temperature sensor, signal processing board, structure and necessary software. It measures three-axis angular rate, three-axis acceleration and three-axis inclination angle of a carrier, outputting compensated data (including temperature compensation, installation misalignment angle compensation, and nonlinear compensation) through RS-422 serial port using an agreed communication protocol.

Technical Specifications

Gyroscope Specification

Parameter	Unit	HG4930C
Measuring range (customizable)	°/s	±200
Zero-bias stability (@ Allan variance)	°/h	0.2
Zero-bias stability (10 s smoothing, 1σ, room temperature)	°/h	0.5
Zero-bias error over full temperature range	°/h	2.5
Random walk	°/√h	0.02
Zero-bias repeatability	°/h	1
Zero bias acceleration sensitivity	°/h/g	1
Resolution	°/h	2
Scale factor nonlinearity	ppm	100
Scale factor repeatability	ppm	100
Cross coupling	%	0.2
Bandwidth	Hz	100

Accelerometer Specification

Parameter	Unit	HG4930C
Measuring range (customizable)	g	±30
Zero-bias stability (Allan Variance @ 25 ℃)	ug	30
Zero-bias stability (1s smoothing)	ug	700
Zero-bias error over full temperature range	mg	1.5
Random walk	m/s/√h	0.01
Zero-bias repeatability	mg	2
Scale factor repeatability	ppm	200
Scale factor nonlinearity	ppm	200
Cross coupling	%	0.2
Bandwidth	Hz	100
